Description

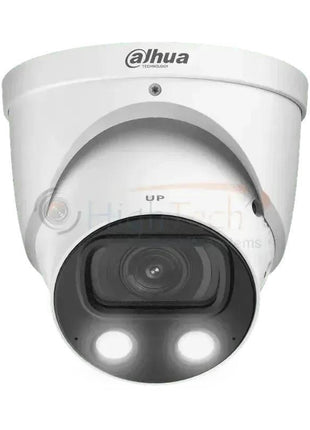

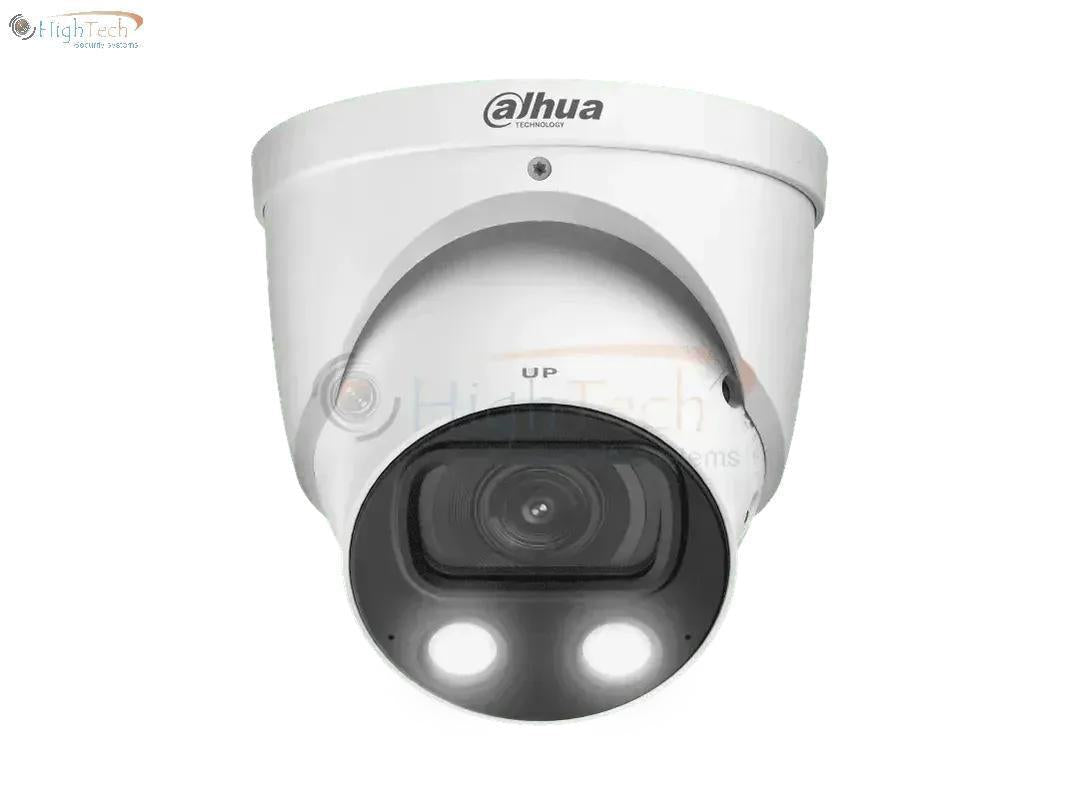

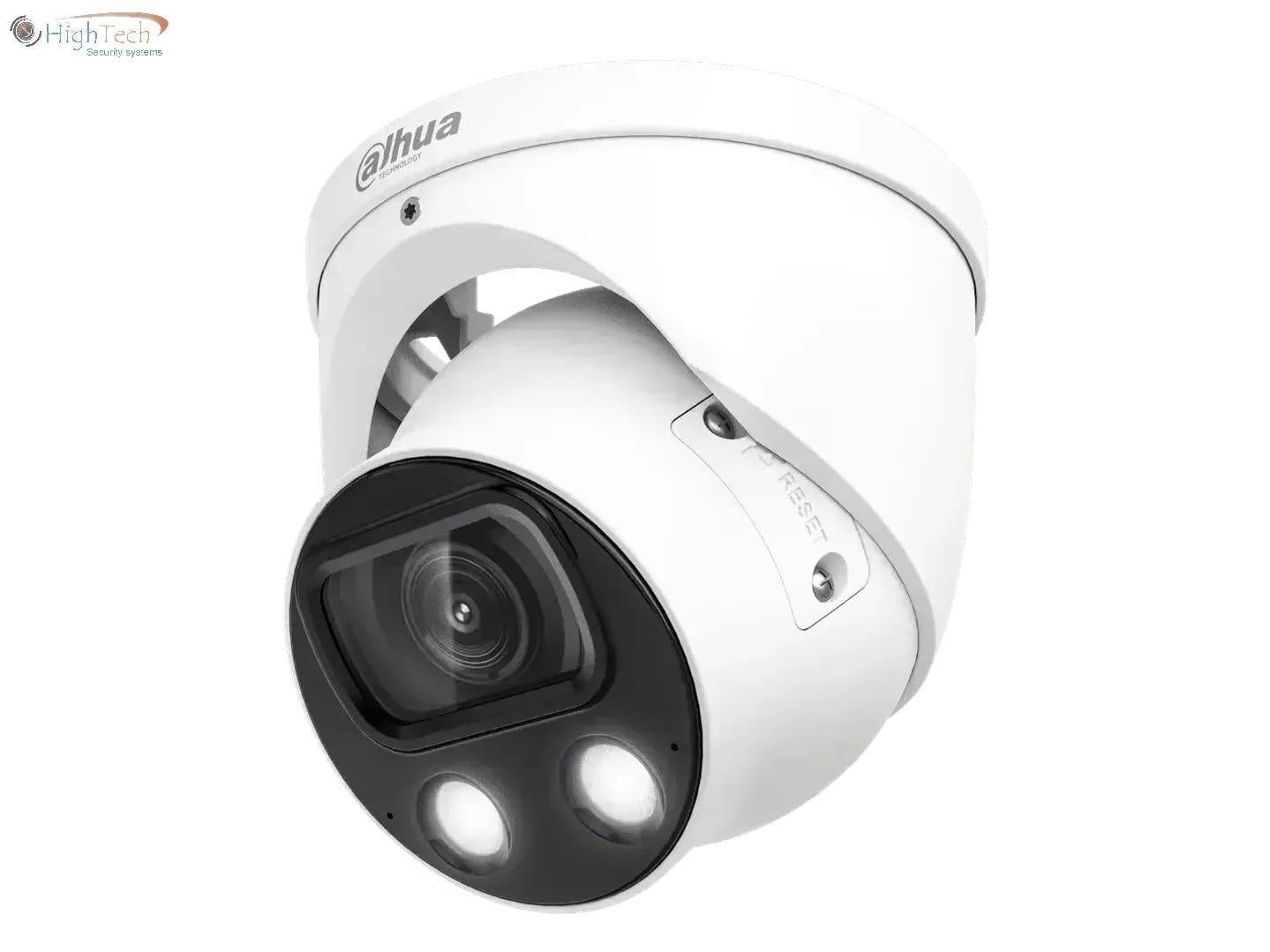

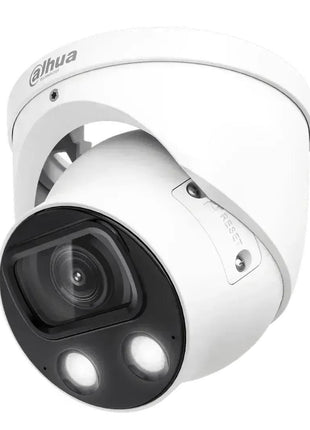

The Dahua IPC-HDW5849H-ASE-LED 2.8mm is an 8MP full-color turret camera from Dahua's WizMind series , designed for advanced video surveillance with excellent performance, even in low light. The camera features white light illumination , WDR (Wide Dynamic Range), and offers smart detection features for security applications. Here are the key features and specifications:

Key Features:

• Image quality : 8MP (3840 x 2160) resolution for detailed and sharp images.
• Full Color : The camera provides full color reproduction even in low light thanks to the built-in white light illuminator.
• White Illumination : The camera has built-in white light illumination , with a range of up to 50 meters, so you can get clear images even in complete darkness.
• WDR (140 dB) : The camera features WDR (Wide Dynamic Range) of 140 dB, which provides excellent dynamic range, even in situations with strong contrast between light and dark areas.
• Auto-Iris Lens : The camera is equipped with a 2.8mm lens with an auto iris function for adjusting the exposure depending on the light conditions.
• Smart Detection : Supports smart detection features such as tripwire , intrusion detection , and SMD 3.0 (Smart Motion Detection).
• ePoE : The camera supports ePoE (extended Power over Ethernet), which provides more flexibility when installing the camera at longer distances.
• IP67 Certification : The camera is dust and waterproof, suitable for outdoor installation in various weather conditions.
• Audio I/O : Supports audio input and output , and is equipped with a built-in microphone for sound recording.

Technical Specifications:

• Sensor : 1/1.2 inch progressive scan CMOS sensor .
• Image resolution : 8MP (3840x2160) at 25 fps.
• Compression : Supports H.264/H.265 for efficient video transmission and storage.
• Light Sensitivity : 0.0005 lux in color and 0 lux with white light on for excellent low-light performance.
• Network Access : Supports network monitoring via Web Viewer , CMS (DSS/PSS) , and DMSS mobile app.
• Storage : Supports a microSD memory slot (card not included) for local storage.
• Noise Reduction : 3DNR (3D Noise Reduction) for reducing noise in low light.
• Alarm I/O : Supports alarm input and output for integration with alarm systems.

Applications:

This camera is suitable for a wide range of security applications:

• Homes : For securing outdoor areas such as gardens, driveways and entrances.
• Businesses : For monitoring commercial properties such as warehouses, parking lots and shopping centres.
• Public Areas : Ideal for monitoring public areas such as streets, parks and other busy places.

Summary :

The Dahua IPC-HDW5849H-ASE-LED 2.8mm is an 8MP Full Color security camera with white light illumination , WDR (140 dB) , and advanced features such as Smart Detection and SMD 3.0 . The camera offers excellent low-light performance and is ideal for both indoor and outdoor use, with its robust IP67 certification and ePoE support for flexible installation. Perfect for monitoring homes, businesses, and public spaces.

Download Datasheet

Specifications

• SKU: IPC-HDW5849H-ASE-LED-2.8mm
• Supplier Specification: Dahua IPC-HDW5849H-ASE-LED
• EAN: 6923172592484
• In the box: Dahua IPC-HDW5849H-ASE-LED, Manual
• Dimensions: Φ122mm × 119.7mm
• Warranty: 5 years
• Indoor / Outdoor: Yes
• Wireless (WiFi): No
• Resolution: 8.0 MP (4K)
• Night vision (IR): Yes
• POE support: Yes
• ONVIF: Yes
• Move & Tilt (PT): No
• Compression: H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
• Audio: Built-in Microphone
• Lens: 2.8 mm
• Horizontal angle of view: 102°
• WDR: Yes
• NAS Support: Dahua & Synology
• P2P (Plug: P2P (Plug
• Play): No
• Email and/or Push notification on motion: Yes
• SD card function: Yes, max 256GB
• Smartphone & tablet support: Yes
• Mobile APP: iDMSS / gDMSS ( iOS / Android )
• Read more less

Pros and cons

• People count
• WizMind Series 8MP
• SMD
