Description

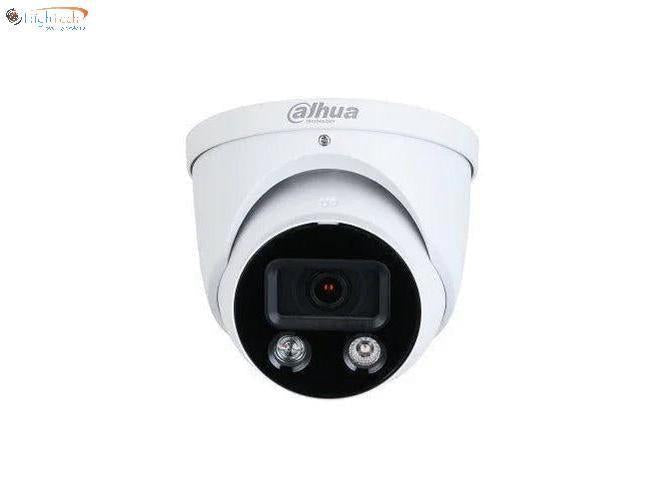

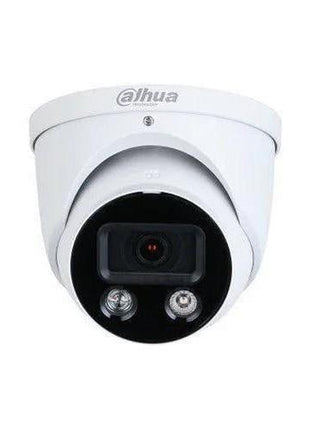

The Dahua IPC-HDW3849H-AS-PV 3.6mm is an advanced 8MP security camera from Dahua's WizSense series, designed for high-quality video surveillance with smart AI features. This camera offers excellent image quality, powerful night vision capabilities, and advanced deterrent technology, making it an ideal choice for both indoor and outdoor applications.

Key Features:

1. Image Quality and Sensor :

   • 8MP resolution (3840x2160) : The camera delivers detailed images with a high resolution of 8 megapixels, ideal for capturing sharp images in large areas.
   • 1/2.8 inch progressive scan CMOS sensor : Ensures excellent image quality and low-light performance.

2. Smart Lighting and Night Vision :

   • Built-in IR and White Illumination : The camera has both infrared and white illumination for night vision, with a range of up to 30 meters .
   • Object-controlled lighting : The lighting is automatically activated based on motion detection, which improves night vision efficiency.

3. AI-supported features :

   • SMD 4.0 (Smart Motion Detection) : Avoids false alarms by detecting only relevant movements (such as vehicles or people).
   • AI Perimeter Protection : The camera can set virtual boundaries and generate an alarm if they are crossed.
   • People and vehicle detection : The camera distinguishes between people and vehicles to provide targeted security alerts.

4. WDR (Wide Dynamic Range) :

   • 120 dB WDR : The camera can maintain sharpness and details in scenes with both dark and brightly lit areas, making it ideal for situations with strong light shadows.

5. Compression and Network :

   • Triple streaming (H.264/H.265) : Supports multiple streams for flexible video playback at different resolutions and bitrates.
   • 25 fps at 8MP : The camera delivers smooth video footage at 25 frames per second at 8MP resolution.

6. Lens and Field of View :

   • 3.6mm lens : This lens provides a wide field of view for monitoring larger areas. The camera can offer a horizontal angle of view of approximately 87.5 degrees .

7. Storage and Monitoring :

   • Micro SD card slot : For local storage (microSD card not included).
   • Audio I/O and Microphone : Supports both audio input and output for communication or sound recording.
   • Network Monitoring : The camera can be viewed and managed via platforms such as web viewer , CMS (DSS/PSS) , and the DMSS mobile app.

8. Power supply :

   • Supports both PoE (Power over Ethernet) for easy installation and 12V DC power supply.

9. Weather resistance :

   • IP67 Certification : The camera is dustproof and water resistant, making it suitable for use in outdoor environments.

Summary:

The Dahua IPC-HDW3849H-AS-PV 3.6mm offers excellent 8MP image quality with AI-powered human and vehicle detection , active deterrence via strobe and siren, and smart lighting for night vision up to 30 meters. Suitable for both indoor and outdoor use, the camera is IP67 certified and features PoE support for easy installation. It offers advanced security capabilities with WDR , triple streaming , and perimeter protection .

Download Datasheet

Specifications

• SKU: IPC-HDW3849H-AS-PV-3.6mm
• Supplier Specification: Dahua IPC-HDW3849H-AS-PV
• EAN: 6923172580177
• In the box: Dahua IPC-HDW3849H-AS-PV
• Dimensions: Φ122.0 mm × 110.9 mm
• Warranty: 5 years
• Indoor / Outdoor: Yes
• Wireless (WiFi): No
• Resolution: 8.0 MP (4K)
• POE support: Yes
• ONVIF: Yes
• Audio: Two-way mic
• speaker: speaker
• Compression: H.265; H.264; H.264H; H.264B; MJPEG (sub stream)
• Lens: 3.6 mm
• Horizontal angle of view: 90°
• WDR: Yes
• NAS Support: Dahua Synology
• Email and/or Push notification on motion: Yes
• SD card function: Yes, max 256GB
• Smartphone & tablet support: Yes
• Mobile APP: iDMSS / gDMSS ( iOS / Android )
• Read more less

Pros and cons

• Active deterrence by means of siren
• Blue/red flashing light
• AI features: perimeter protection
• Built-in IR
• white lighting
• Quick Pick
• Smart search
• SMD 4.0
