Description

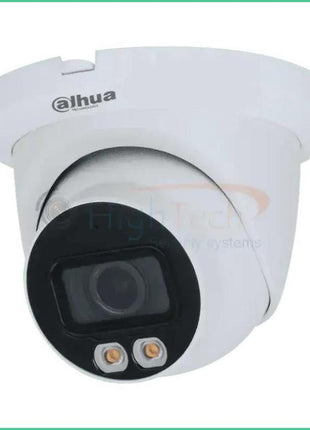

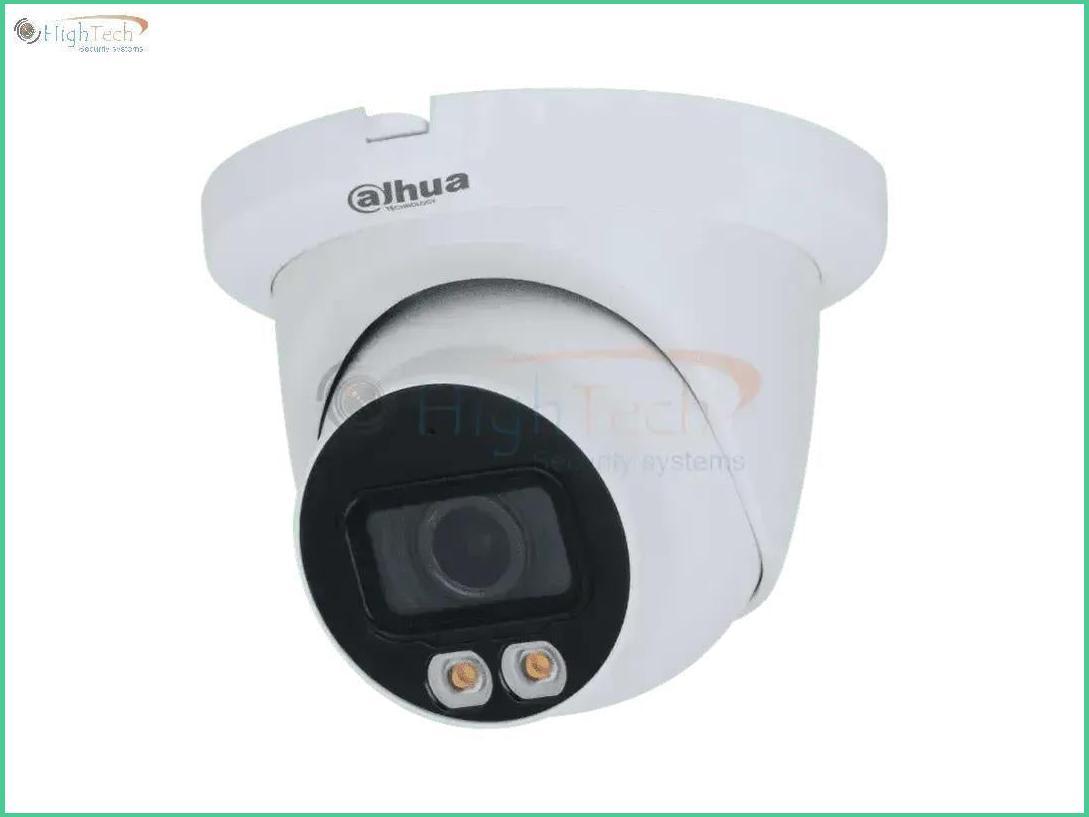

The Dahua IPC-HDW3449TM-AS-LED 3.6mm is a 4MP security camera from Dahua, designed for both indoor and outdoor security. The camera utilizes advanced image processing technologies and offers excellent performance, even in low-light conditions. Here are its key features:

Key Features:

1. Image Quality and Sensor :

   • 4MP Resolution (2560x1440) : The camera delivers sharp and detailed images with a resolution of 4 megapixels.
   • 1/2.7 inch CMOS sensor : This sensor provides excellent performance for both day and night security.

2. Smart Lighting :

   • Built-in LED light : The camera features built-in white LED light for bright images in low light, ideal for night vision or low-light situations.
   • Maximum range of 30 meters : The built-in lighting ensures a visible distance of up to 30 meters.

3. WDR (Wide Dynamic Range) :

   • The camera offers WDR 120dB for capturing detailed images in environments with strong light and shadow effects.

4. Smart AI support :

   • SMD (Smart Motion Detection) : This technology allows to detect only relevant movements, thus reducing false alarms.
   • AI Detection : The camera can detect objects such as people and vehicles, which helps minimize false alarms.

5. Lens and Field of View :

   • 3.6mm lens : The lens provides a wider field of view, ideal for monitoring larger areas.

6. Compression and Streaming :

   • H.265/H.264 compression formats for efficient video streaming and storage management, while triple streaming provides flexibility in video playback.

7. Storage and Monitoring :

   • Micro SD card slot : The camera supports local storage (microSD card not included).
   • Network Monitoring : The camera can be viewed and managed via different platforms, such as web viewer, Dahua CMS (DSS/PSS) and DMSS mobile app.

8. Weather resistance :

   • IP67 certification : This makes the camera resistant to dust and water, making it suitable for use in outdoor environments.

9. Network and Power Supply :

   • Supports PoE (Power over Ethernet) for easy installation and 12V DC power supply.

Summary:

The Dahua IPC-HDW3449TM-AS-LED 3.6mm is a robust 4MP security camera with excellent night vision capabilities thanks to its built-in LED illumination and WDR 120dB for detailed images in challenging lighting conditions. Thanks to AI detection and Smart Motion Detection (SMD), it offers targeted security without false alarms. Suitable for outdoor use , the camera supports PoE and is IP67-certified , making it resistant to various weather conditions.

Download Datasheet

Specifications

• SKU: IPC-HDW3449TM-AS-LED-3.6mm
• Supplier Specification: Dahua IPC-HDW3449TM-AS-LED
• EAN: 6939554988059
• In the box: Dahua IPC-HDW3449TM-AS-LED Manual
• Dimensions: 99.1mm × Φ121.9mm
• Warranty: 5 years
• Indoor / Outdoor: Yes
• Wireless (WiFi): No
• Resolution: 4.0 MP
• Night vision (IR): Yes
• POE support: Yes
• ONVIF: Yes
• Compression: H.265+/H.265/H.264+/H.264/H.264B/H.264H/ MJPEG(sub stream)
• Audio: Built-in Microphone
• Lens: 3.6mm
• Horizontal angle of view: 90°
• WDR: Yes
• NAS Support: Dahua & Synology
• Email and/or Push notification on motion: Yes
• SD card function: Yes, max 256GB
• Smartphone & tablet support: Yes
• Mobile APP: iDMSS / gDMSS ( iOS / Android )
• Read more less

Pros and cons

• Vehicle/person detection
• Built-in white light lighting
• AI features: perimeter protection
• SMD PLUS
