Description

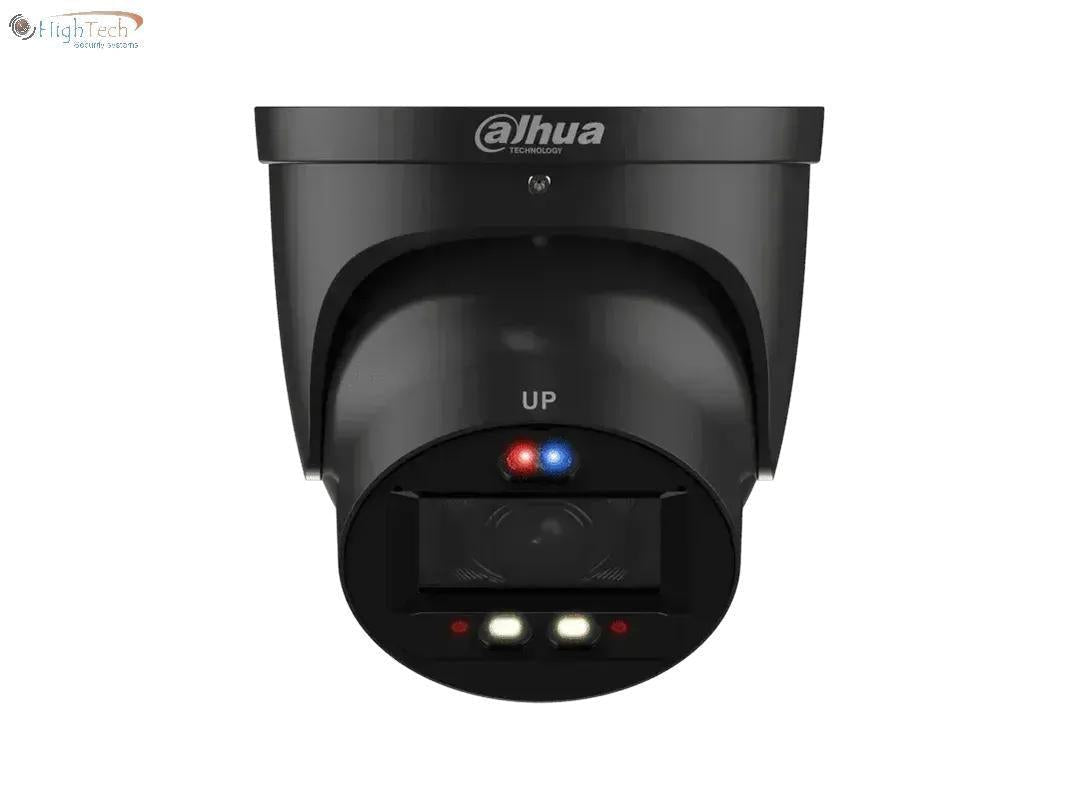

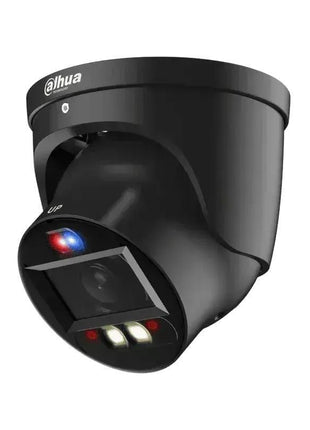

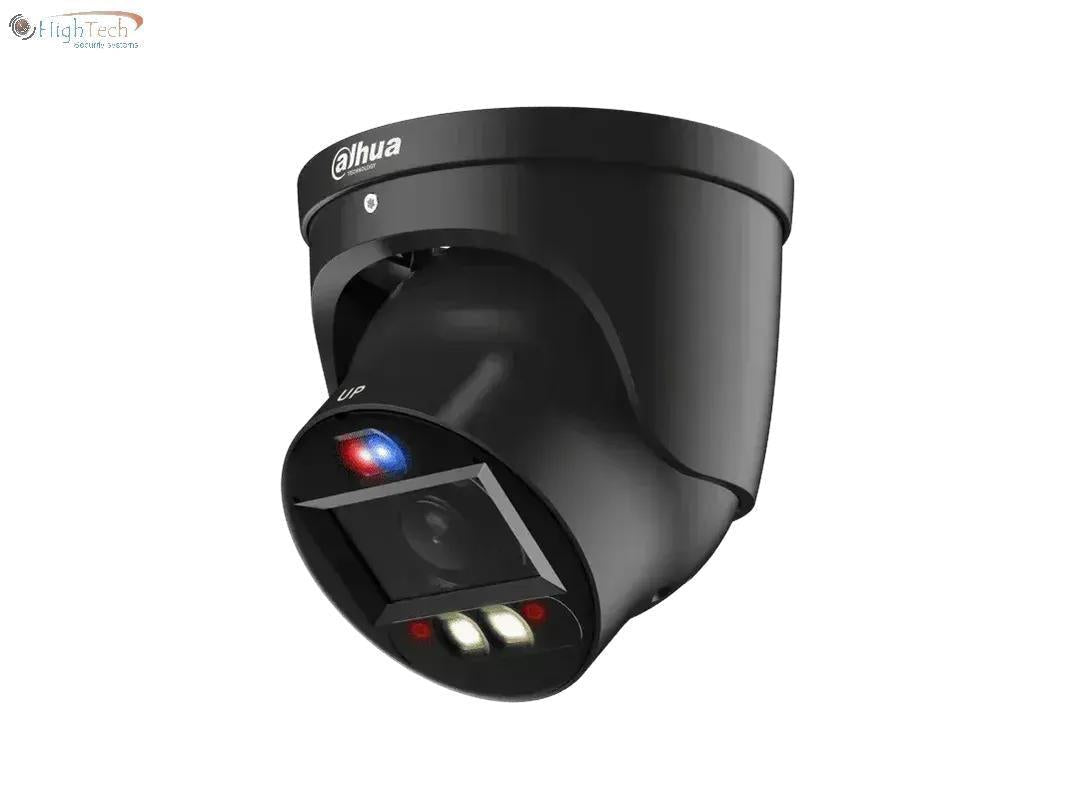

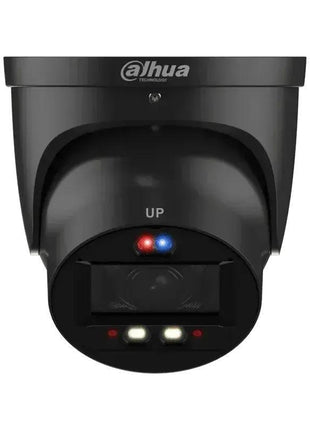

The Dahua IPC-HDW3449H-ZAS-PV is an advanced 4MP network camera from the WizSense series, designed for both indoor and outdoor applications. This camera offers excellent low-light performance, robust construction, and smart video features.

🔧 Key Specifications

• Image sensor : 1/2.7" CMOS sensor with a resolution of 2688 × 1520 (4MP) at 25/30 fps.

• Lens : Vari-focal motor zoom lens with a focal length range of 2.7mm to 13.5mm, providing a horizontal angle of view of 103° to 33° .

• Minimum illumination : 0.003 lux (color), 0.0003 lux (black/white), and 0 lux with lights on.

• Lighting : Built-in IR LEDs with a range of up to 50 meters and warm light LEDs with a range of up to 40 meters for night vision .

• Smart video features :

  • Perimeter protection with line crossing and intrusion (supports classification and accurate detection of vehicles and people).

  • SMD 4.0 (Smart Motion Detection) for efficient motion detection.

  • AcuPick for quickly locating target objects in live and recorded video.

  • AI SSA (Smart Scene Adaption) for automatic image parameter adjustment.

• Storage : Supports microSD cards up to 256 GB (not included).

• Network : PoE (Power over Ethernet) and 12V DC power supply.

• Housing : IP67 rated for water and dust resistance, suitable for indoor and outdoor use.

• Audio : Built-in microphone and speaker for audio recording and two-way communication.

  SKU	IPC-HDW3449H-ZAS-PV-Black
  Supplier Specification	Dahua IPC-HDW3449H-ZAS-PV
  EAN	6939554960062
  In the box	Dahua IPC-HDW3449H-ZAS-PV, Manual
  Dimensions	127.6 mm × Φ122.0 mm
  Warranty	5 years
  Indoor / Outdoor	Outdoor
  Wireless (WiFi)	No
  Resolution	4.0 MP
  Night vision (IR)	Yes
  POE support	Yes
  ONVIF	Yes
  Move & Tilt (PT)	No
  #X -optical zoom	-
  Compression	H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
  Audio	Two-way mic and speaker
  Lens	2.7 mm–13.5 mm
  Horizontal angle of view	103°–33°
  WDR	Yes
  NAS Support	Dahua & Synology
  P2P (Plug and Play)	No
  Email and/or push notification upon movement	Yes
  SD card function	Yes, max 512GB
  Smartphone & tablet support	Yes
  Mobile APP	Dahua DMSS

  Download Datasheet



Pros and cons

• WizSense TIOC 3.0
• Smart Dual Illumination
• Active deterrence
• SMD 4.0
• AI SSA
• Quick Pick
• Smart search
• AcuPick
• 2.7-13.5mm lens
• IR (50m)
• white lighting (max 40m
• Red
• Blue flash alarm, speaker/siren
• Quick pick
