Description

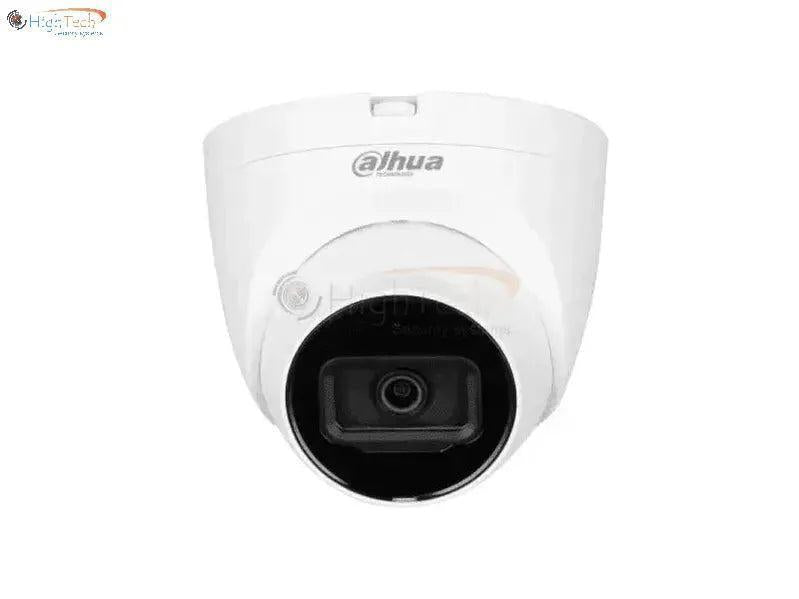

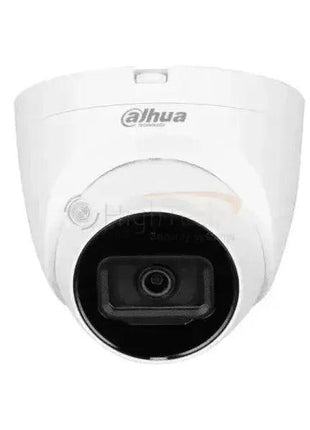

The Dahua DH-IPC-HDW2541TP-S-0280B-S2 is a 5MP WDR IR turret camera from the Dahua WizSense 2 series . This camera offers advanced features for both indoor and outdoor surveillance, with excellent image quality and AI capabilities for reliable detection.

Key Specifications :

• Image sensor :

  • 1/2.7 inch 5MP Progressive scan CMOS sensor for sharp, high-resolution images of 5MP .

• Resolution :

  • Up to 20 fps at 5MP , or 25/30 fps at lower resolutions for smooth video streaming.

• Lens :

  • 2.8mm lens , offers a wide field of view and is ideal for capturing larger areas.

• Infrared lighting :

  • IR LEDs for illumination up to 30 meters , which is ideal for night vision and improving visibility in the dark.

• Wide Dynamic Range (WDR) :

  • 120dB WDR delivers outstanding image quality in situations with both bright and dark areas in the image, such as backlighting or shadows.

• Image Enhancement :

  • 3DNR (3D Noise Reduction) helps to reduce noise in the image, especially in low light conditions.
  • HLC (High Light Compensation) and BLC (Backlight Compensation) improve images in extreme lighting conditions.

• Storage and Network :

  • Micro SD card slot for local storage (micro SD card not included).
  • Supports PoE (Power over Ethernet) , so both power and data can be delivered over a single cable.
  • Alternatively the camera can be powered via 12V DC .

• Weather resistance :

  • IP67 certification means the camera is completely dustproof and resistant to water immersion, making it ideal for outdoor use, even in harsh weather conditions.

• Audio :

  • Built-in microphone for recording audio along with the video, further strengthening security by capturing sound information.

Summary :

The Dahua DH-IPC-HDW2541TP-S-0280B-S2 is a 5MP IR Turret camera from the WizSense 2 series , with advanced features such as 120dB WDR , 30-meter IR illumination , AI support , and PoE for reliable video surveillance. Ideal for both indoor and outdoor surveillance thanks to its IP67 certification, the camera offers excellent performance in various lighting conditions. The built-in microphone provides additional audio functionality for more complete surveillance.

Download Datasheet

Specifications

• SKU: DH-IPC-HDW2541TP-S-0280B-S2
• Supplier Specification: Dahua DH-IPC-HDW2541TP-S-0280B-S2
• EAN: 6923172581259
• Dimensions: 100.9mm × Φ109.9mm
• Warranty: 5 years
• Wireless (WiFi): No
• Resolution: 5.0 MP
• Night vision (IR): Yes
• POE support: Yes
• ONVIF: Yes
• Compression: H.265,H.264,H.264B,H.264H, MJPEG (sub stream)
• Audio: Yes
• Lens: 2.8 mm
• Horizontal angle of view: 114°
• WDR: Yes
• NAS Support: Dahua & Synology
• Email and/or Push notification on motion: Yes
• SD card function: Yes, max 256GB
• Smartphone & tablet support: Yes
• Mobile APP: iDMSS / gDMSS ( iOS / Android )
• Read more less

Pros and cons

• SMD Plus
• Built-in MIC
• Built-in IR LED
