Description

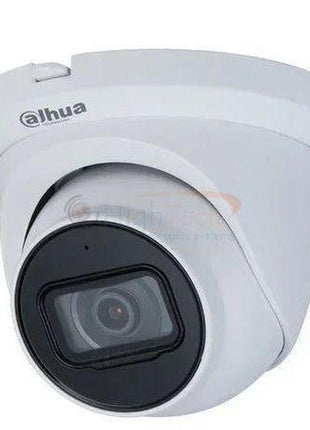

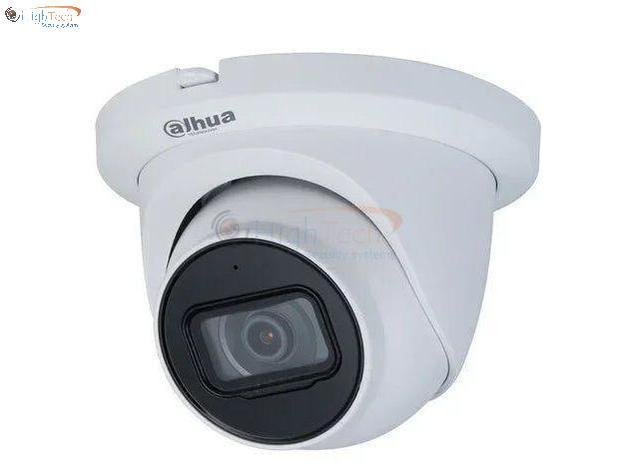

The Dahua DH-IPC-HDW5241TMP-ASE-28B-S3 is an advanced security camera from Dahua's WizMind S series . This camera is designed for high-performance video surveillance, with a number of impressive specifications and features. Here's a summary of the key features and specifications:

Key Features:

• 2MP Low Light IR Turret Camera : The camera offers 2 megapixel resolution and excellent low-light performance, using infrared illumination for night vision up to 50 meters.
• WDR (Wide Dynamic Range) 120 dB : The camera offers a wide dynamic range of 120 dB, which makes images with high contrast (such as in bright light or shadow) more visible.
• AcuPick AI Functionality : Advanced Artificial Intelligence (AI) for smart video detection, such as facial recognition, smart object detection, and people counting.
• Built-in Infrared Illumination : The camera has built-in IR illumination that has a range of up to 50 meters, allowing for sharp images even in complete darkness.
• Network connection : Supports PoE (Power over Ethernet), meaning both power and network connection can be provided through a single cable. The camera also supports ePoE (extended Power over Ethernet) for longer distances.
• IP67 Protection : The camera is dustproof and waterproof, making it suitable for both indoor and outdoor use in various weather conditions.

Technical Specifications:

• Sensor : 1/2.8 inch progressive scan CMOS sensor.
• Image quality : 2 megapixel (1920x1080), 25 frames per second at 2MP.
• Compression : Supports H.264 and H.265 compression for efficient video transmission and storage.
• Mechanical Day/Night Function (TDN) : The camera can automatically switch between color mode during the day and black and white mode at night depending on the lighting conditions.
• 3DNR (3D Noise Reduction): Reduces noise in images, especially in low light.
• Built-in Audio I/O : Ability to record and pass through audio.
• Light sensitivity : 0.0007 lux (color) and 0 lux (black and white, IR on).
• Security and Analysis : IVS (Intelligent Video Surveillance), Smart Sound Detection, Face Detection, Smart Object Detection, People Counting.
• Micro SD Slot : Supports microSD memory cards (not included), for local video storage.
• Network Access : Supports multiple ways of network monitoring, such as via web viewer, CMS software (DSS/PSS), and DMSS mobile app.

Applications:

This camera is ideal for various security applications, such as:

• Homes : For excellent security of both the interior and exterior of a home.
• Businesses : Suitable for monitoring business premises, such as entrances, parking lots or warehouses.
• Public Areas : Ideal for monitoring busy areas such as shopping malls, airports, and schools.

With its AI functionality, high resolution, and robust design, the Dahua DH-IPC-HDW5241TMP-ASE-28B-S3 is an excellent choice for high-quality video surveillance in various environments.

Download Datasheet

Specifications

• SKU: DH-IPC-HDW5241TMP-ASE-28B-S3
• Supplier Specification: Dahua DH-IPC-HDW5241TMP-ASE-28B-S3
• EAN: 6923172583437
• Dimensions: 89 mm
• Warranty: 5 years
• Wireless (WiFi): No
• Resolution: 2.0 MP
• Night vision (IR): Yes
• POE support: Yes
• ONVIF: Yes
• Compression: H.265,H.264,H.264B,H.264H, MJPEG (sub stream)
• Audio: Yes
• Lens: 2.8 mm
• Horizontal angle of view: 114°
• WDR: Yes
• NAS Support: Dahua & Synology
• Email and/or Push notification on motion: Yes
• SD card function: Yes, max 256GB
• Smartphone & tablet support: Yes
• Mobile APP: iDMSS / gDMSS ( iOS / Android )
• Read more less

Pros and cons

• People counting
• Smart object detection
• IVS, face detection
• Smart sound detection,
• Built-in infrared lighting
