Dahua Muursteun te gebruiken met Dahua mini domes, meer info zie selection chart

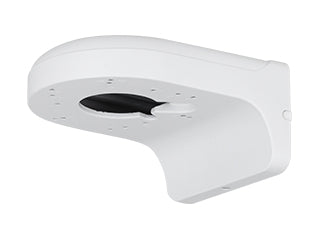

DH-PFB2203W
Wall Mount Bracket

· Built of aluminum alloy and SGCC material.
· Suitable for a variety of cameras and is elegant.

Series Overview
The Mounting Bracket works with front-end services, supporting installation methods such as wall mount, pole mount, corner mount and
in-ceiling mount. Select brackets are designed to suit complex scenes,
making them convenient to use in environments with high temperatures,
humidity, frequent vibrations, and in locations that are highly corrosive.
These highly reliable brackets are easy to install and use.
 Scene
Ideal for mounting cameras, and works in temperatures ranging from
–40 °C to +60 °C (–40 °F to +140 °F) and in environments with a relative
humidity of less than 90%.

Technical Specification
Structure
Casing Material SGCC; Aluminum alloy
Product Dimensions 162.0 mm × 129.4 mm × 80.0 mm (6.38" × 5.09" ×
3.15") (L × W × H)
Appearance Color White
Net Weight 0.48 kg (1.06 lb)
Gross Weight 0.56 kg (1.23 lb)
Load Bearing 1.0 kg (2.20 lb)
Installation Wall mount
Applicable Model Please see "Camera Accessories Selection"
Packaging Dimensions 172.0 mm × 137.0 mm × 86.0 mm (6.77" × 5.39" ×
3.39") (L × W × H)
 Installation
Ordering Information
Type Model Description
Camera
Mount Series DH-PFB2203W Wall Mount Bracket
Environment
Operating Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity < 90% (RH)
Storage Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity 10%–90% (RH)
Anti-corrosion Level Basic Protection

Ordering Information
Type Model Description
Camera
Mount Series DH-PFB2203W Wall Mount Bracket
