Dahua Montage box voor gebruik met Bullet style camera en mini dome , meer info zie selection chart, zwarte uitvoering

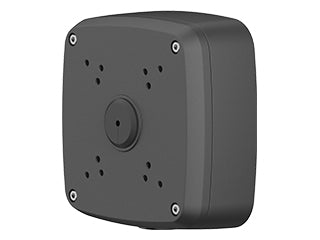

DH-PFA121-B
Water-proof Junction Box

· Built of aluminum alloy.
· IP66 junction box.
· Contains cable outlets on its bottom and sides to make wiring more
 convenient.
· Matched with particular cameras, beautiful and elegant designed.

Series Overview
The Junction Box is beautifully designed and highly convenient. Cables
can be organized in it and there are outlets at the bottom and side of the
box, making it easy to install and use.
 Scene
Ideal for mounting cameras, and works in temperatures ranging from
–40 °C to +60 °C (–40 °F to +140 °F) and in environments with a relative
humidity of less than 90%

Technical Specification
Structure
Casing Material Aluminum alloy
Product Dimensions 134.0 mm × 133.9 mm × 56.0 mm (5.28" × 5.27" ×
2.20") (L × W × H)
Appearance Color Black
Net Weight 0.52 kg (1.15 lb)
Gross Weight 0.62 kg (1.37 lb)
Load Bearing 3.0 kg (6.61 lb)
Installation Junction mount
Screw Thread Type G3/4
Applicable Model Please see "Camera Accessories Selection"
 Installation
Ordering Information
Type Model Description
Camera
Mount DH-PFA121-B Water-proof Junction Box
Packaging Dimensions 146.0 mm × 65.0 mm × 147.0 mm (5.75" × 2.56" ×
5.79") (L × W × H)
Environment
Protection IP66
Operating Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity <90% (RH)
Storage Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity 10%–90% (RH)
Anti-corrosion Level Basic Protection

Ordering Information
Type Model Description
Camera
Mount DH-PFA121-B Water-proof Junction Box
